بسم اله الرحمن الرحیم - هست کلید در گنج حکیم

Nasir project for distorted airborne camera simulation

Preface

This is an extended airborne camera simulation including geometric, photometric and temporal distortions.

It can be run online (capable of generating over 30frames/second) or store the images for offline usage.

This code is the result of less than a decade of need, experience, and coding on the field of robotics navigation.

It can be used for evaluating different image-processing algorithms under these kinds of distortions and parameters:

  • Any Installation angle under aircraft
  • Pinhole camera model
  • Geometric distortions including Brown-Conrady 5 parameter distortion
  • Photometric distortions including gaussian noise, vignetting, and a total gain(as time of day)
  • Temporal distortions including delay, motion blur, rolling shutter and interlacing

The earth surface is assumed to have an arbitrary shape, formed by satellite and digital elevation maps; Or it can include just a calibration pattern.

The aircraft moves on an input path, determined by a descrete flight log of positions and angles in any frequency (which can consist of two to thousands of points)

The path generator algorithm, makes an eligible high frequency path with constrained velocities and accelerations.

A simple bias/noise simulation of usual airborne sensors including accelerometer, gyroscope, magnetometer(compass), pressure altimeter and gps is also included.

Hopefully, this simulator will be used in the proper hands, as it's name suggests.

References

This simulator is based on the following article. Please cite the paper when using this toolbox or parts of it in an academic publication.

Mahmoudi, A., Sabzehparvar, M., & Mortazavi, M. (2021). A virtual environment for evaluation of computer vision algorithms under general airborne camera imperfections. Journal of Navigation, 1-21. doi:10.1017/S0373463321000060

Installation

It is tested on ubuntu 16.04 and 18.04 LTS, although it also used to work on Android before simplifications.

Ensure that the proper GPU driver is installed to prevent bad behaviour like system-wide lockups.

A good graphic card ensures the speed of execution.

$sudo apt-get install cmake build-essential
$sudo apt-get install xdotool
$sudo apt-get install libplplot-dev
$sudo apt-get install libopenscenegraph-dev openscenegraph
$sudo apt-get install libopencv-dev (optional)

Install ROS (optional)

It is also possible to install libosgearth-dev, openscenegraph-plugin-osgearth if the OpenSceneGraph does not get installed correctly.

After installations, go to the program folder and run:

$mkdir build
$cd build
$cmake ..
$make -j4
$sudo -E LD_LIBRARY_PATH=/opt/ros/noetic/lib ./CamSim

Remember to use sudo for running as the keyboard input for piloting and diagram navigation is read directly from keyboard device

Typical Errors

In Ubuntu 20.04 I also needed to do the following commands to prevent some complier linker errors:

$sudo ln -s /usr/lib/x86_64-linux-gnu/libSM.so.6 /usr/lib/x86_64-linux-gnu/libSM.so
$sudo ln -s /usr/lib/x86_64-linux-gnu/libICE.so.6 /usr/lib/x86_64-linux-gnu/libICE.so
$sudo ln -s /usr/lib/x86_64-linux-gnu/libXext.so.6 /usr/lib/x86_64-linux-gnu/libXext.so

On run-time faults, try replacing between wxwidgets and qtwidget in plplots library (nsrPlot.cpp).

On error: "assertion 'G_IS_DBUS_CONNECTION (connection)' failed", solve by:

$sudo apt purge fcitx-module-dbus

Demos

This is a simulated flight on the FSR2015-ASL dataset path.

Average height over ground is 110m, and the speed is run at 10x averaging to 100m/s.

The camera is set to 10fps, with a 15 degrees tilt angle.

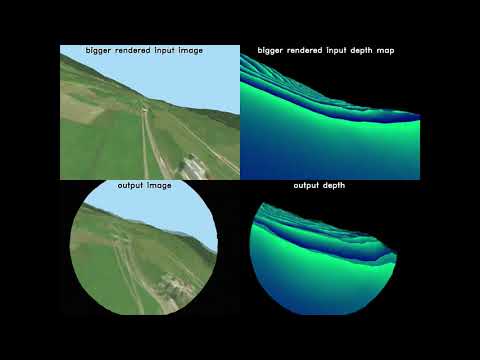

Simulation Steps:

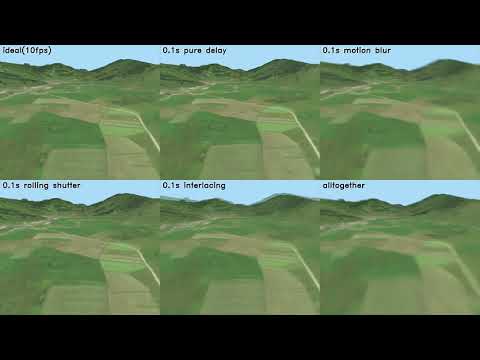

Temporal distortions:

Notice the camera outage at extremely high speeds.

The input ideal images are rendered bigger, as temporal(and lens) distortions need data from outside the normal field-of-view. For extremely high speeds, this margin might not be enough. To prevent this problem, increase the extraMargin parameter (with the cost of slower runs).

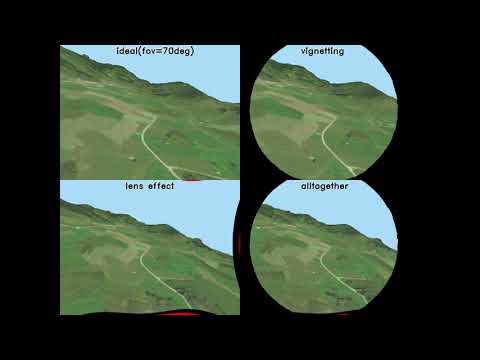

Lens(geometric+photometric) distortions:

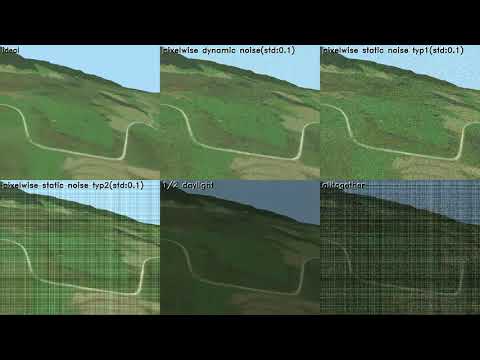

Photometric distortions:

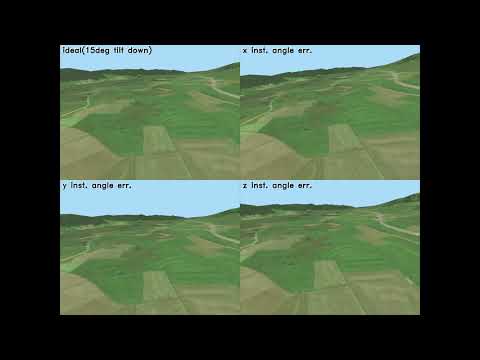

Installation angle errors:

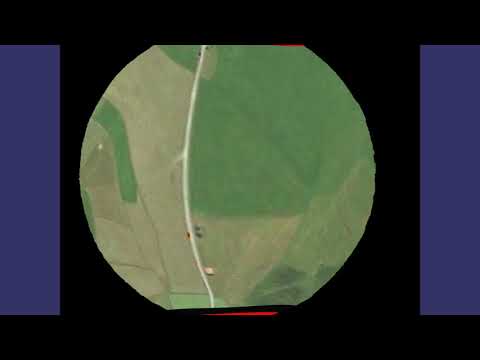

Vehicles on the road:

Usage

  1. The program searches for a flash drive to store log files(not to exhaust your hard disk), try to use a USB3.0 flash drive with enough free space

  2. Prepare and set map addresses in .xml files(see demParams & mapParams below)

  3. (Optional) vignet.bmp should be a 3 channel(RGB) bitmap, having the same resolution with output, each channel multiplies to corresponding channel

  4. path.csv: aircraft path flight log

A descrete flight path is input and the aircraft is controlled on it with bound velocity-accelerations.

The frequency is arbitrary and even two points can be used.

manual mode can be entered/exited at anytime by pressing 'm'

columns:

frame time(s, can start from any positive number),

lat(deg)/x(m) towards north,

lon(deg)/y(m) towards east,

alt(m)/z(m) towards down,

ac roll(deg),

ac pitch(deg),

ac yaw(deg, wrt. real north)

  1. Parameters.xml (and included files in it)

    These files are read from top to bottom, bottom lines override upper ones

    Other xml files "with the same structure" can be included

    All meaningfull tags should be defined inside the "simParams" tag

    Deactivated TAG names are deformed by adding a zero or anything

    • mainParams

    renderWhat = "LUMIN" (for grayscale image), "COLOR", or "DEPTH"

    showWhat = "MAP" or "PATTERN"

    doWhat = "NOTHING", "SAVE_RAW", "IMAGE_PROC", or "SAVE_ROS_BAG" (if ros exists)

    rosBagCompression = "ture", "false"

    Below is the frequency and log size results of the program running on a laptop with an Intel Core-i7-7500 cpu and an NVIDIA GeForce 940MX gpu.

    253 tile of size 256x256 were loaded and rendered in this experience. Motion blur was disabled.

    A USB3.0 external storage was used for storing logs. Using a USB2.0 instead of a USB3.0 flash lowers fps by 50%

    Notice that the program will firstly use the flash drive for storing log files, to prevent extreme harddisk usage.

    doWhat fps log size(100x(640x480-mono) images)
    NOTHING 80 0MB
    SAVE_RAW(bmp) 38 88MB
    SAVE_RAW(png) 19 ~9MB
    SAVE_ROS_BAG(compressed) 25 ~9MB
    SAVE_ROS_BAG(uncompressed) 50 ~31MB

    The log would be very bulky, in order of 200MB/min, in the non-compressed rosbag case, for a 10fps grayscale 640x480 camera. The color image would even need 4x bandwidth.

    • demParams

    addr: dem tiles absolute path (SRTM digital elevation files, e.g: n35_e036_1arc_v3.tif):

    • mapParams

    Rendered distance is minimum of maxDist and max horizon seen at maxAlt(spherical earth)

    when rendering depth, motion bluring & noise are deactivated(but not lens effect or rolling shutter or delay)

    depth format: vec4(floor(floor(Z)/255.)/255., fract(floor(Z)/255.), fract(Z), 1.);

    addr: absolute address for Mobile Atlas Creator Format(MOBAC) files also known as inverted TMS, with 256x256 .jpg images

    zoom: if not set, is set automatically

    using dem in zooms equal or lower than 10x is canceled

    • patternParams

    location is laid horizontally on the zero ground at centerLat, centerLon of mapParams

    metricWidth: how much in meters the pattern width should be stretched

    • pathParams

    Input data format

    csvPositionFmt(for path.csv): "LLA"(Lat, Lon, Alt(wgs84-m)) as default, "XYA"(X, Y, Alt(wgs84-m) or "XYZ")

    trackerType: "0"-> descrete(hold), "1"-> linear interpolation, "2"-> linear interpolation + 1 controller loop, "3"-> linear interpolation + 2 controller loops

    trackerType: "4"-> linear interpolation + 3 controller loops, "5"-> linear interpolation + 2 controller loops + output filter, "6"-> linear interpolation + input filter + 2 controller loops + output filter(works best)

    accMax: max linear acceleration(m/s2) applied to reach interpolated path specified in csv file

    angAccMax: max angular acceleration(deg/s2) applied to reach interpolated path specified in csv file

    controlFreq: path follower controller frequency, also used for advancing time in calculating velocities and sensor data log, should be a multiple of cameraFps

    • pathParamsExtra

    endTime: The time to end simulation before path file or other input ends

    if speedFactor!=1, the endTime will extend or shrink

    speedFactor: the speed at which the flight log would be passes, default: 1x

    worldScale: scale every metric thing, including earth radius, dem elevations, aircraft path

    as scale is unobservable, scaling should theoretically not change camera output, (just scales metric sensors output)

    but is beneficial if you want to see things nearer than 1meter or farther than 65km

    altOffset: altitude added to data log

    • sensorParams

    Sensors output data format

    cameraFps: should be dividable by controlFreq, otherwise jitter occurs

    phasePercent: time offset for first frame, between 0. and 1.

    first_frame_time == first row time in path.csv + phasePercent/cameraFps

    • dynamicParams

    dynamic intrinsic parameters(move effect)

    dynamic distortion approximated by a linear model

    td: Center row delay of camera (usually positive)

    tr: Up2down(rolling shutter) delay of each screen(usually positive meaning upper rows be sooner)-->

    te: In-row(in-pixel) delay, can be tr/rows (usually positive)-->

    motionBlurExtraSamples: extra sample points used for creating motion blur(caused by in-row delay), is added to DIRECT_SAMPLING_POINTS (defined in frag. shader), increase if better motion blur wanted

    ti: odd(including 1st) rows are got from previous ti time (usually positive)

    tdErr: error in td in seconds over above nominal value

    trErr: error in tr in seconds over above nominal value

    • marginParams extraMargin: Ideally rendered image width and height multiplied by extraMargin before applying distortions so that static-dynamic distortions does not cause void regions

    Increase if void(black) regions in the borders are more than what expected by vignetting (static effects of lens) or if void regions apear in hard movements(by dynamic effects like delay, rolling shutter,...)

    extraZoom: Just for debug, zooms out

    • signalParams dayLight between[0,1]

    noiseAmpDynamic between[0,1], is 1 sigma of added white gaussian noise for each pixel in each channel, notice that if the output image is ment to be a grayscale image, the 3 channel averaging reduces the noise by 1/sqrt(3)~=0.57 factor.

    noiseAmpStatic1 between[0,1], is 1 sigma of added static gaussian noise for each pixel in gray channel, this is the typical signal caused by lens dirt

    noiseAmpStatic2 between[0,1], is 1 sigma of added gaussian noise for each col/row in gray channel, this is the typical noise present in night cameras

    fogVisibilityDistance in meters, is the max visibility distance based on a linear fog model

    final pixel = (DayLight*fog(pix) + noise)

    • camInAcEu

    ZYX Euler angles of camera in aircraft frame(in deg)

    Note that as engineers are more familiar with zyx euler angles for aircraft (and pan and tilt for camera),

    just here, camera front axis is assumed on its x axis,

    so yaw==pan, pitch==-tilt, roll==roll

    (roll= 0 , pitch= 0 , yaw=0) means looking to aircraft x(nose) direction, top of camera in upward direction

    (roll= 0 , pitch=-90, yaw=0) means looking to aircraft z(down) direction, top of camera in nose direction,

    (roll=-90, pitch=-90, yaw=0) means looking to aircraft z(down) direction, top of camera on left wing,

    err: the default installation angle error in degrees for euler rotations,

    if not set directly in below fields, the final errors would be applied with this amplitude in random directions

    xErr: installation error angle (over above nominal values)

    yErr: installation error angle (over above nominal values)

    zErr: installation error angle (over above nominal values)

    • Ideal camera intrisic parameters

    scaleFactor: scales parameters(width, height, fx, fy, ox, oy) for when you need higher, lower resolution with same lens

    width, height: should match settings.render2stream_width, settings.render2stream_height

    You should provide {ox, oy} or {oxOffset, oyOffset}

    oxOffset, oyOffset: image center offsets in pixels(default:0)

    ox = oxOffset + width /2.

    oy = oyOffset + height/2.

    ox, oy are found in 3x3 cam matrix(K)

    ox, oxOffset increase means shift from left to right

    oy, oyOffset increase means shift from up to down

    You should provide one of these 3 parameters: fovX & fovY(in ideal lens camera), just f, or fx & fy

    fovX: Field of view in x(left-right) direction, fx := ((width /2.)/tan(fov_x/2.*pi/180.))

    fovY: Field of view in y(up -down ) direction, fy := ((height/2.)/tan(fov_y/2.*pi/180.))

    f: (=fx=fy) is equal canonical length in pixels(found in 3x3 cam matrix)

    fx, fy: is x,y canonical length in pixels(found in 3x3 cam matrix)

    fErr : in pixels

    oxErr: in pixels

    oyErr: in pixels

    • 5-8 param lens distortion intrinsic parameters (used for lens correction in OpenCV)

    As we use a fragment shader to make the lens model fill every pixel,...

    the inverse(undistortion) model is needed for making the distortion;...

    As there is no complete analytical solution to inverse model,...

    We use an iterative solution

    k1Err: typical value: 0.03

    k2Err: typical value: 0.03

    t1Err: typical value: 0.001

    t2Err: typical value: 0.001

    k3Err: typical value: 0.03

    • Vignetting is the effect of camera lens holder ring or other objects darkening the frame in the borders

    vignetFile="" means no vignetting

    Even if no vigneeting is used, the view will be limited under strong lens effect,

    as our rendering is limited, see extraMargin parameter

    vignetThresh: maximum light at which the vignetTexture is assumed opaque

    vignetThresh2: minimum light at which the vignetTexture is assumed transparent

    between these thresholds, the vignet is multiplied by output seperately in each channel

    If you mean simple grayscale vignet, remember to make the vignet gray scale before usage

    In Gimp->Right click on image->image->mode->grayscale, File->Export As-> use .bmp-->

    • includeParams

    Included Camera file, note that the included file has the same format(and possible tags) with this file.

    Note that the main xml file and all the included files will be copied into the log folder so that it can be checked in a later phase

Libraries

Remember to have enough patience if you want to understand the whole program. Although I have tried hard to make the program readable, years of working cannot be understood in a glance.

These independant libraries can be reviewed before reviewing the main program:

  • pugixml
  • libtiff
  • geoid
  • MathLib
  • numbuffer
  • plot3d

Impatient readers can just check the glsl shaders under View/nsrOSGShaders.cpp

Shortkeys

Remember: Run the program with sudo if you want keyboard inputs to work

Manual piloting shortkeys

Working with manual aircraft path is possible using short keys described as follows:

  • 'm': entering/exiting manual path mode
  • up/down arrow keys: go forward/backward (manual mode)
  • right/left arrow keys: turn right/left (manual mode)
  • '+'/'-': moving aircraft to right/left (manual mode)
  • page up/down: increasing/decreasing aircraft (manual mode)

Investigating through diagrams

Being used to matlab plots, I was searching for a similar ploting toolbox in C/C++ with no success, so I wrote a similar library based on plplot.

It is not very nice but is usable. Navigating through diagrams is possible using short keys described as follows:

  • Alt+right/left arrows: Navigate between different figures
  • Alt+up/down arrows: Navigate between different windows inside a figure
  • Ctrl+right/left arrows: Zoom In/Out Horizontally
  • Ctrl+up/down arrows: Zoom In/Out Vertically
  • Shift+right/left arrows: Shift Horizontally
  • Shift+up/down arrows: Shift Vertically

Other Shortkeys

  • 'c'/'q': will stop the simulation and stop for final review by user
  • 'Esc': will close the simulation instantly

Notes

  • In this simulation, a custom coordinate system named CCEF is used to place things in openscenegraph As the earth surface is placed in ECEF coordinates, objects have very big coordinates, meaning 6,400km+. The openscenegraph engine can not render such big coordinates without numerical errors in order of tens of centimeters. To eliminate these errors, a custom coordinates system parallel to ecef is used, named CCEF (Custom centered earth fixed)

  • If flickering is seen on far mountains or objects farther than 65Km are needed to be seen, decrease worldScale in Parameters.xml or increase both zNear, zFar in nsrOsgCamScene.cpp. Openscenegraph has limited resolution for depth.

  • Mountains shape seem unsusual Increase TILES_DEM_RES_FACTOR in View/nsrMapDrawable2.h file

  • High or low accelerometer/ gyro rms change 1st order filter constants: TAW, TAW2, ... in nsrPoseSim.cpp

  • Opencv circular or chessboard patterns -cannot- calibrate fisheye lens, as whole pattern become non-detectable near the edges. so near the edges calibration(near vignetts) become unusable use opencv "charuco", kalibr "april", or better, agisoft-lens "wide chess" pattern(if focus in close range is not a problem)
